Large-Format Studio Plotters

Engineered for high-capacity studio production, limited-edition batch creation, and iterative fine-art workflows, our large-format studio plotters unlock monumental physical scale for digital and algorithmic creators. Spanning from the ultra-precise, portable ArtStation 1824 & 2436 with built-in magnetic steel bases to the immense UUNA TEK 3.0 2x1.25M and 2x2M tempered glass flatbeds, this line maintains sub-millimeter positioning accuracy. It gives master printers, agency design studios, and generative artists the freedom to plot across diverse, uncompromised fine art mediums.

Core Features:

  • Scalable Commercial Studio Production: Specifically engineered to convert complex algorithms into physical limited-edition series. Features standalone asynchronous offline modes via WiFi or SD cards to allow continuous batch printing without tying up dedicated studio computers.
  • Versatile Multi-Material Toolheads: Equipped with adaptive dual-buffered and heavy-load Z-axis carriages (0-90 degree adjustable ranges). Easily swaps out and securely locks technical rapidographs, acrylic markers, brush pens, or traditional graphites up to 16mm in diameter.
  • Expanded Archival Canvas Clearance: Designed to match standard Western print and fine-art paper form factors (up to A1, A0, and Arch D sizes). While the ArtStation series manages standard sheets seamlessly, the UUNA TEK 3.0 Mega Flatbeds feature modified height clearances to plot directly onto heavy panels, wood, or pre-stretched canvases up to 40mm thick.
  • Performative Studio Acoustics: Utilizes advanced silent motor drivers and integrated internal or nylon drag-chain cable protection. Operating between an ultra-quiet <55dB (ArtStation) and <60dB (UUNA TEK 3.0 Workspace Quiet), the machines serve as mesmerizing, noise-free live design fixtures within public-facing creative agencies.





Institutional & Workflow Solutions

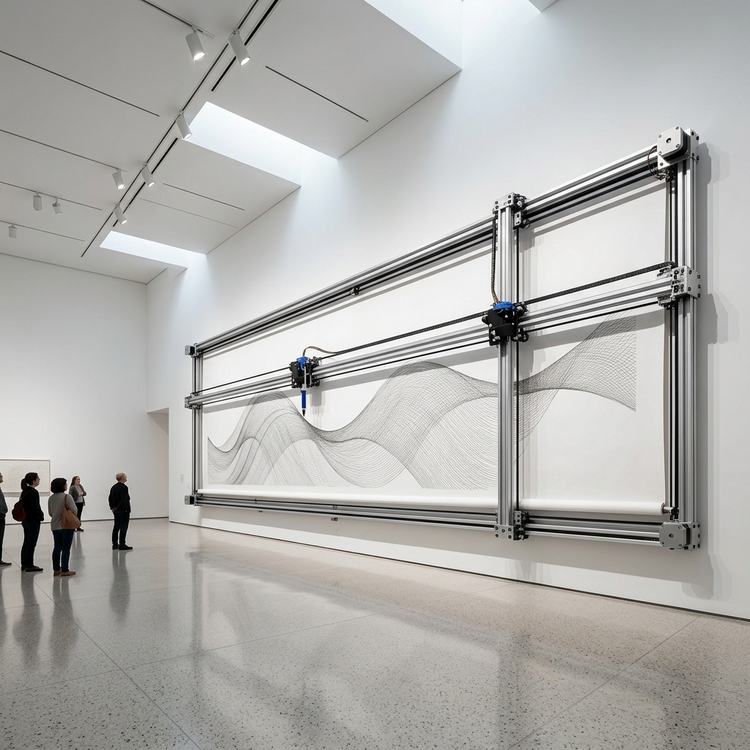

  • For Museums, Galleries & Public Art Spaces: Exhibition-Ready Performance

    Empower installation-scale installations and continuous, live public art commissions. Designed to withstand the rigorous demands of exhibition environments, these systems serve as standalone durational performance art installations.

  • For Universities & Research Labs: Durable, Multi-User Infrastructure

    Equip your digital-to-physical infrastructure with reliable, pedagogical-grade hardware. Built to survive the rigor of student labs, the ArtStation series features open hardware accessibility, robust safety-stops, and low-maintenance parts, maximizing your educational ROI while bridging the gap between STEM and STEAM.

  • For Contemporary Artists & Creative Coders: Zero-Friction Code Pipelines

    Stop wrestling with clunky, proprietary software. ArtStation is built for the modern developer-artist. It accepts pure, uncompressed SVG layouts and standard G-code. It interfaces seamlessly with custom script setups from Python, Processing, vsketch, and Grasshopper. No mandatory cloud subscriptions, no ecosystem lock-in—just absolute control over your vectors.

Feature 1:

Exhibition-Grade Generative Art System (0.0125mm Native Resolution)

The Technical Reality: Generative artwork scales by detail. Standard commercial drawing machines introduce micro-backlash, causing microscopic overlapping lines to blur or tear the paper fibers.

The UUNA TEK® Solution: Engineered with a native 0.0125 mm minimum motion resolution and an absolute mechanical tolerance of ~0.1 mm, the ArtStation series turns hyper-complex algorithmic grids, dense mathematical moiré patterns, and chaotic chaotic-attractor vectors into razor-sharp physical lines. Your artwork retains its crisp geometric definition even under gallery-grade diagnostic lighting.

Feature 2:

Studio-Grade Continuous Operation (Zero-Drift 24/7 Duty Cycle)

The Technical Reality: A standard plot can easily take 18 to 36 hours of continuous travel. On cheap DIY belt-driven kits, motors overheat, chips skip steps, and lines drift mid-way through a $2,000 piece of archival paper.

The UUNA TEK® Solution: Designed as institutional art production infrastructure, the ArtStation series incorporates heavy-duty stepper motors paired with active heat-dissipation cooling blocks and an upgraded H-SE industrial motherboard. It is rated for continuous, unattended operation—meaning it can run all night in a dark studio or perform live throughout a month-long museum exhibition without a single millimeter of spatial deviation.

Feature 3:

High-Stability CoreXY Architecture & Industrial Linear Guides

The Technical Reality: Traditional cantilever or X-Y gantry plotters shake violently at high vector transition speeds, generating "ghosting" artifacts and wavy lines.

The UUNA TEK® Solution: Built upon a reinforced CoreXY motion framework, both motors are securely stationary at the base, drastically reducing the moving mass of the gantry. Guided by high-rigidity steel linear rails and fiberglass-reinforced timing belts, the tool-head cruises up to 280 mm/s (11 in/sec) with smooth, vibration-free vector acceleration.

Feature 4:

Multi-Material Artistic Compatibility (70°–90° Adaptive Angle Tool-Head)

The Technical Reality: Human hands hold pens at angles; standard plotters force pens perfectly vertical (90°), which ruins fountain pen nibs, shreds fine-liners, and makes dry mediums like charcoal impossible to feed.

The UUNA TEK® Solution: Featuring a proprietary 70°–90° adjustable pen angle module and a robust 10mm controlled Z-axis tool-lift system, ArtStation gives the artist absolute mechanical control over how the medium meets the canvas. It provides the exact structural pressure control required to plot using delicate technical fineliners, quick-dry fountain inks, heavy paint markers, soft graphite, or fragile vine charcoal sticks.

Feature 5:

Open Workflow Integration & API-Driven Pipelines

The Technical Reality: Nothing frustrates a creative coder more than being locked into a buggy, cloud-dependent proprietary app that constantly crashes on large SVG files.

The UUNA TEK® Solution: UUNA TEK® is built on open vector protocols. It connects directly via a latency-free USB control line and reads native SVG layouts and industrial execution G-code directly. It serves as a seamless physical compiler for scripts coming straight out of Python, Processing, vsketch, openRCA, Inkscape, Adobe Illustrator, or parametric CAD / Grasshopper frameworks.

UUNA TEK® Large-Format Studio Plotters: Complete Product Line Comparison

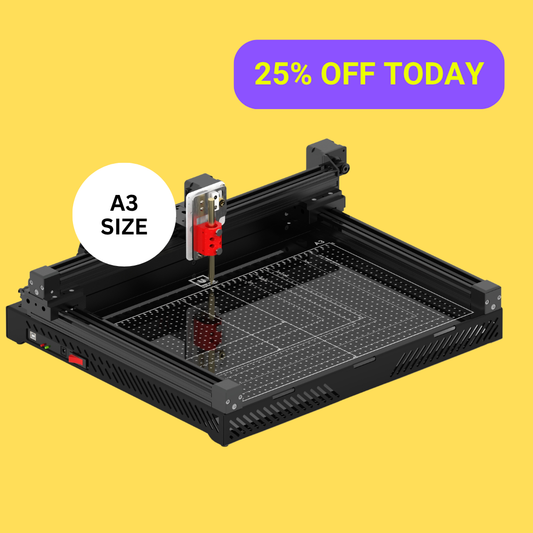

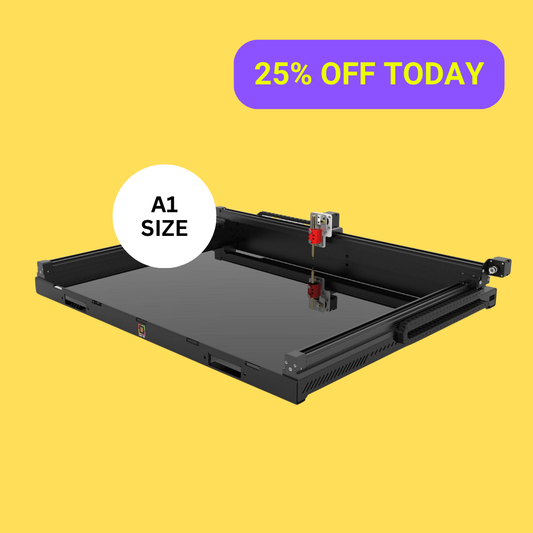

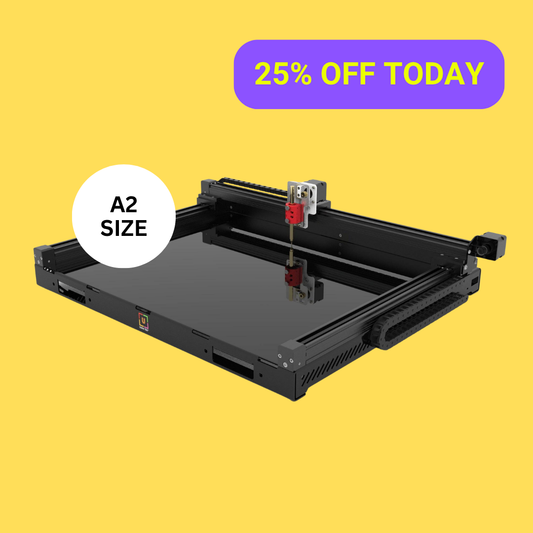

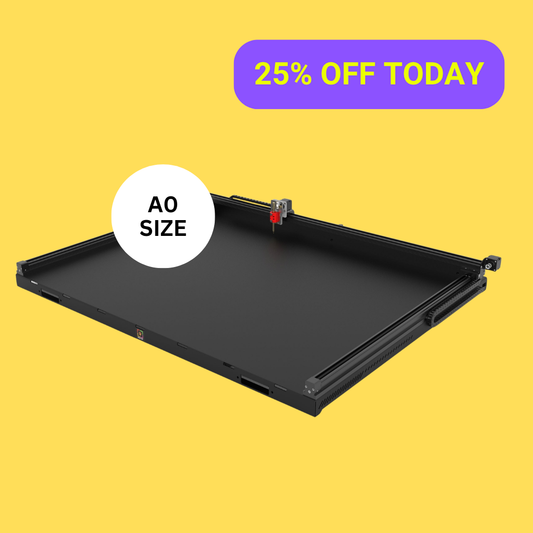

Technical Specifications UUNA TEK 3.0 (A3) UUNA TEK 3.0 (A2) UUNA TEK 3.0 (A1) UUNA TEK 3.0 (A0) UUNA TEK ArtStation 1824 UUNA TEK ArtStation 2436 UUNA TEK 3.0 (2x1.25M) UUNA TEK 3.0 (2x2M)
System Classification Desktop Compact Medium-Format Large-Format Full-Scale Workstation Premium Studio Institutional Flagship Industrial Prototyping Heavy-Duty Mega Flatbed
Effective Plotting Area 420 X 297 mm 594 X 420 mm 841 X 594 mm 1189 X 841 mm 610 X 457 mm (24" X 18") 914 X 610 mm (36" X 24") 2000 X 1250 mm 2000 X 2000 mm
Motion Architecture H-Frame H-Frame Reinforced H-Frame Anti-Deflection Gantry CoreXY Structure CoreXY Structure Anti-Deflection Gantry Dual-Drive Gantry
Maximum XY Travel Speed 20,000 mm/min 20,000 mm/min 20,000 mm/min 20,000 mm/min 16,800 mm/min 16,800 mm/min 20,000 mm/min 20,000 mm/min
Minimum Motion Resolution 0.02 mm 0.02 mm 0.05 mm 0.05 mm 0.0125 mm 0.0125 mm 0.1 mm 0.1 mm
Mechanical Precision (XY) +-0.02 mm +-0.02 mm +-0.05 mm +-0.05 mm +-0.1 mm +-0.1 mm +-0.1 mm +-0.1 mm
Max Substrate Thickness 30 mm 30 mm 30 mm 30 mm 18 mm (0.7 in) 18 mm (0.7 in) 40 mm (Modified) 40 mm (Modified)
Vertical Pen Travel 10 mm 10 mm 10 mm 10 mm 10 mm (0.4 in) 10 mm (0.4 in) 10 mm 10 mm
Tool Angle Control 0-90 Degree Variable 0-90 Degree Variable 0-90 Degree Variable 0-90 Degree Variable 70-90 Degree Adjustable 70-90 Degree Adjustable 0-90 Degree Variable 0-90 Degree Variable
Frame Materials Q235 Steel + Al Heavy Steel Frame Reinforced Dual-Beam Anti-Deflection Gantry Al Profile + Stainless Steel Al Profile + Stainless Steel Anti-Deflection Gantry Anti-Deflection Gantry
Base Plate Material 2mm Rigid Steel 2mm Rigid Steel 2mm Rigid Steel 2mm Rigid Steel Magnetic Steel Plate Magnetic Steel Plate 8mm Tempered Glass 8mm Tempered Glass
Motherboard & Control GRBL Hardware GRBL Hardware GRBL Hardware Industrial GRBL DrawCore V1.3 DrawCore V1.3 Industrial GRBL Industrial GRBL
System Firmware GRBL Native GRBL Native GRBL Native GRBL Industrial EBB Firmware EBB Firmware GRBL Industrial GRBL Industrial
Connectivity USB / SD Card USB / SD Card USB / SD Card USB / SD Card USB USB USB / Standalone USB / Standalone
Power Adapter Output DC 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC 24V Industrial DC 24V Industrial
Device Physical Weight 11 kg 17.5 kg 32 kg 48 kg 11 kg ~16 kg ~110 kg ~165 kg
Overall Footprint 570 X 440 mm 740 X 570 mm 1010 X 740 mm 1370 X 1010 mm 560 X 840 mm ~860 X 1140 mm 2400 X 1650 mm 2400 X 2400 mm
Deployment Status 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled

FAQ

Q1: How do these studio plotters optimize high-capacity batch printing for limited-edition generative art drops?

A: Studio workflows demand efficiency. All our plotters include independent standalone execution modes via high-gain WiFi or SD cards. This means you can queue massive, intricate vector files and run continuous print cycles overnight without needing to keep a primary studio computer or laptop tethered to the hardware.

Q2: What are the exact effective plotting boundaries and overall studio footprints for this line?

A: This collection is precisely scaled to match standard global art paper sizes:

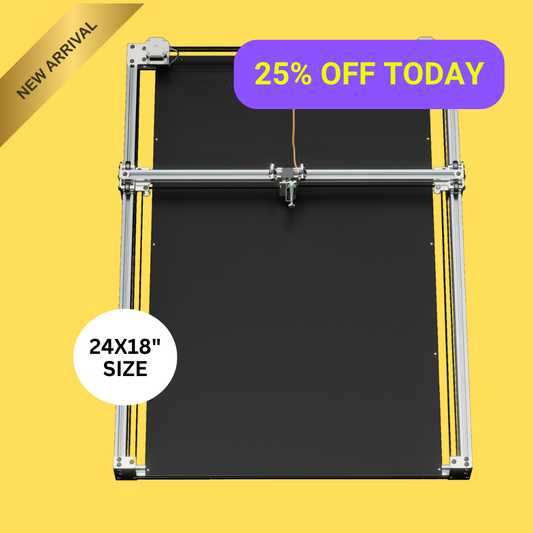

ArtStation 1824: Perfect for medium studio spaces with a 610 x 457 mm (24 x 18 inch) travel area.

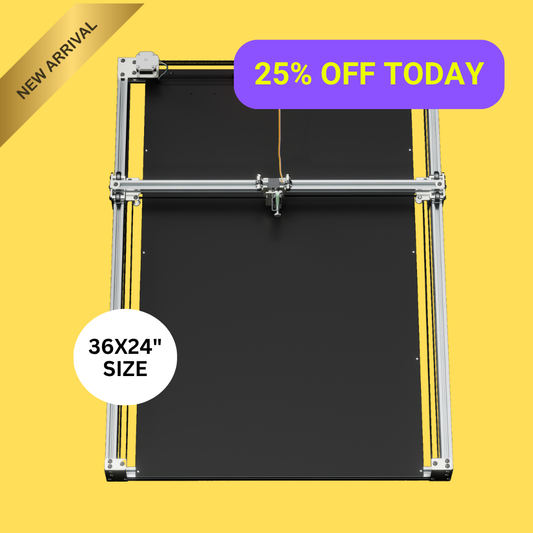

ArtStation 2436: Matches standard 914 x 610 mm (36 x 24 inch) archival sheets.

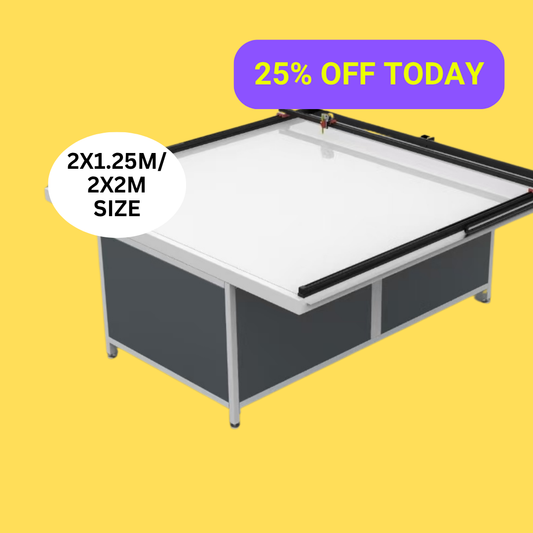

UUNA TEK 3.0 Series: Spans metric limits from A3 up to A0 (1189 x 841 mm), all the way up to our grand-scale 2x2M flatbed (2000 x 2000 mm) for oversized canvas murals.

Q3: Why is a CoreXY motion architecture preferred by generative artists over traditional desktop plotters?

A: The ArtStation 1824 and 2436 utilize a premium CoreXY motion structure where both stepper motors are fixed to the frame, significantly reducing the weight of the moving carriage. This architectural design minimizes inertia and eliminates micro-vibrations, allowing the machine to render dense, complex algorithmic paths and overlapping vector lines with breathtaking crispness.

Q4: Can I plot with fine art tools like graphite, charcoal, gel pens, and heavy acrylic markers?

A: Absolutely. Our reinforced, heavy-duty buffered carriages feature an adjustable tool angle system (70 to 90 degrees on ArtStation; 0 to 90 degrees on UUNA TEK 3.0) and custom tensioning. This setup accommodates everything from delicate 0.1mm technical fineliners and rapidographs to heavy paint markers and fountain pens up to 16mm in diameter, absorbing vertical variations without ruining expensive tips.

Q5: How do the different base plate materials affect paper clamping and workflow speed?

A: The ArtStation series features an integrated Magnetic Steel Plate base, allowing studio artists to use flat neodymium magnets to secure fine-art papers instantly, completely eliminating the need for sticky tapes. For heavy or rigid industrial art mediums, the massive UUNA TEK 3.0 2x1.25M and 2x2M models utilize ultra-flat 8mm Toughened Tempered Glass beds to provide an absolutely rigid, non-yielding drawing surface.

Q6: What is the minimum motion resolution when rendering high-density, complex mathematical curves?

A: The ArtStation 1824 and 2436 feature a stunning native XY resolution of 0.0125mm (2032 steps per inch). This incredible micro-resolution ensures that complex generative fractals, moire patterns, and algorithmic mathematical curves are plotted smoothly without jagged steps or visible vector degradation.

Q7: Are these drawing systems fully compatible with macOS and creative design software?

A: Yes, there are no operating system barriers in your studio. The entire collection features cross-platform compatibility, running flawlessly on macOS (including full native support for Intel and Apple Silicon chips), Windows (7, 8, 10, and 11), and Linux. You can utilize our native iDraw software, open-source Inkscape, or LightBurn with absolute ease.

Q8: What are the max travel speeds of these plotters, and how do they balance speed with line quality?

A: The ArtStation line delivers high-velocity vector translation up to 280mm/s (11 inches per second). The UUNA TEK 3.0 series clocks max speeds up to 20,000 mm/min. When plotting dense generative art collections, you can easily modulate these travel speeds inside your software to ensure your inks have optimal absorption times on heavy watercolor or archival cotton papers.

Q9: How easy is it to transport these large-format plotters for pop-up galleries or live events?

A: Surprisingly easy. Despite its expansive 2-foot working width, the ArtStation 1824 weighs just 11 kg due to its sleek aluminum profile and stainless steel construction. It features a compact machine height of just 115 mm, allowing it to be easily packed and safely transported to live sketching events, pop-up design exhibitions, or client galleries.

Q10: Does UUNA TEK provide assembly assistance or return protections for professional studios?

A: We ensure a flawless onboarding experience. Every plotter in this collection is delivered 100% preassembled and ready to run straight out of the crate, meaning no complex belt-tensioning or mechanical calibration required. To protect your studio capital investment, your purchase includes Free Worldwide Shipping, a 30-Day Return Policy, and a Lifetime Care Guarantee with immediate access to 1-on-1 expert technical support.
